Automatic Pulse Width Modulation Solar Charge Controller

Place of Origin : CHINA

Brand Name : OEM

Supply Ability : 10000PCS

Packaging Details : Multiple packaging

MOQ : Negotiable

Price : Negotiation

Maximum Current : 10A

Rated Voltage : 12V/24V AUTO

System voltage : 12V/24V Auto

Rated Current : 10A

Max. Input Voltage(Solar Panle Size) : 55V

Over Voltage Protection : 17.0V;*2/24V

Level of Protection : IP30

Color : Black

Application : Solar System Controller

Battery type : Sealed Lead Acid/GEL

Size : 124.7*69.4*34.0mm

Weight : 106g

Certification : ISO9001, CE, SGS

Delivery Time : 10-15 working days

Payment Terms : T/T, L/C, T/T, Western Union

Contact Now

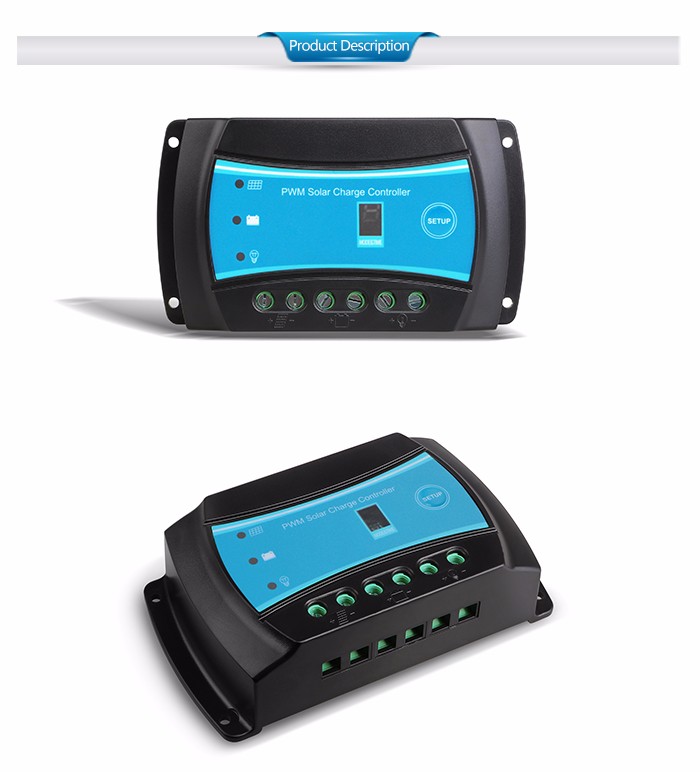

Automatic Pulse Width Modulation Solar Charge Controller

Features

1.12V/24V Auto, mini size.

2. double time frame design, make the street light more flexible.

3. PWM charging mode.

4. various protective functions.

Main Advantages

LCD display , easy to operate on LCD screen
Multi stage charging (3-stage charging , parallel charging and equalized charging function)
BTS – Battery remote temperature sensor terminal
Enable to charge Li-thium, Gel , lead-acid battery
With RS485 & USB communication port
Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit

System voltage	12V/24V Auto
System current	10A
No-load loss	< 5mA/12V;7.5mA/24V
Solar energy input voltage	< 55V
Overvoltage protection	17.0V; ×2/24V
Equal charging voltage	14.6V; ×2/24V(25°C), duration:1h
Ascending charging voltage	14.4V; ×2/24V(25°C), duration:2h
Float charging voltage	13.8V; ×2/24V (25°C)
Return voltage during charging	13.2V; ×2/24V (25°C)
Return voltage for over-discharging	12.5V; ×2/24V
Undervoltage	12.0V; ×2/24V
Over-discharging voltage	11.1V; ×2/24V
Temperature compensation	-4.0mv/°C/2V;
Light-control voltage	Light-control open 8V; light-control close 9V
Light-control judgment time	10min
Circuit protection	Over-charge, over-discharge, short circuit and over-load protection
Circuit protection	Anti- connection-reverse protection for solar battery and storage battery.
Working temperature	-35°C to +65°C;
Protection level	IP30
Weight	106g
Dimensions	124.7×69.4×34.0(mm)(L×W×H)

Automatic Pulse Width Modulation Solar Charge Controller

Product Tags:

Automatic Solar Charge Controller

PWM Solar Charge Controller 10a

PWM solar street light controller

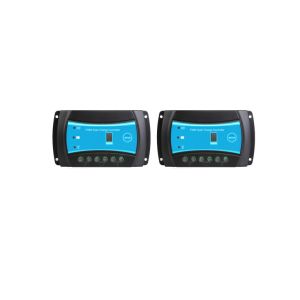

Automatic Pulse Width Modulation Solar Charge Controller Images
